Architectural/Mechanical Contractor New Building Pressure Washer Basis of Design
Why American Pressure Inc Equipment For Build Spec?
- One of our owners, Ben Hagemann was recently a president of CETA, CETA.org, and has been a voting member of the UL STP for 60335-2-79 for 18 years and will be working on this project. Another employee is currently chairing the THC (Technical Harmonization Committee) for UL for our industry on international safety standards.
- With us you are not only getting a company that has many solutions for different pressure washer and water reclamation applications, but also many years of knowledge and technical expertise that you won't find elsewhere in the industry.
- Alkota brand pressure washers have been made for 50+ years and are built and manufactured in the USA in Alcester, SD
- AaLadin brand pressure washers have been made for 43+ years and are built and manufactured in the USA in Elk Point, SD
- Cuda parts washers have been made for 30+ years and are built and manufactured in the USA in Watertown, SD
- All of the equipment we provide for building spec is certified by an NRTL (ETL, CSA, or UL) to the appropriate safety standards, UL 1776 which is sunsetting into UL60335-2-79 or CSA-B140.11-M89
- We believe a pressure washer is more than a commodity purchase for a business or government entity. It is an investment that requires the proper equipment and accessories to solve cleaning problems, in a safe, efficient, and environmentally friendly way
- We provide equipment that offers environmental solvent free cleaning with parts washers, energy saving green high efficiency pressure washers, and water evaporator or reclamation systems
- Employee ergonomics are important to think about and can be greatly improved for pressure washing with the right tools and accessories that we have available

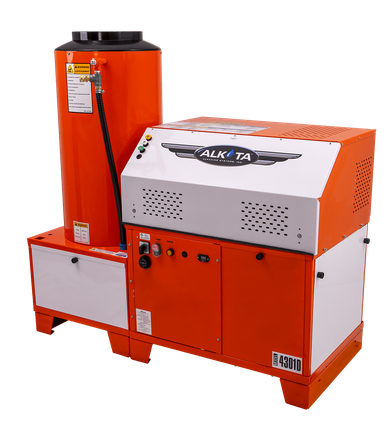

Alkota Gas Fired Series - Stationary NG/LP Hot Water Pressure Washer - ETL Listed
Machine Brochure-Alkota Brochure.pdf
Warranty Information-Alkota Warranty.pdf
Specs Options - Available in 115V 1 PH to 575V 3 PH Power
2161AEUL - 2.1GPM@1600PSI
3111AEUL - 3.0GPM@1100PSI
3201AEUL - 3.0GPM@2000PSI
3241AEUL - 3.0GPM@2400PSI
3301AEUL - 3.0GPM@3000PSI
4181AEUL - 4.0GPM@1800PSI
4201AEUL - 3.6GPM@2000PSI
4231AEUL - 3.7GPM@2300PSI
4301AEUL - 4.0GPM@3000PSI
5181AEUL - 5.0GPM@1800PSI
5231AEUL - 5.0GPM@2300PSI
5301AEUL - 5.0GPM@3000PSI
5401AEUL - 5.0GPM@4000PSI
5501AEUL - 5.0GPM@5000PSI
6231AEUL - 6.0GPM@2500PSI
7201AEUL - 7.0GPM@2000PSI
7301AEUL - 7.0GPM@3000PSI
8251AEUL - 8.0GPM@2500PSI
8351AEUL - 8.0GPM@3500PSI
10201AEUL - 10.0GPM@2000PSI
10301AEUL - 10.0GPM@3000PSI

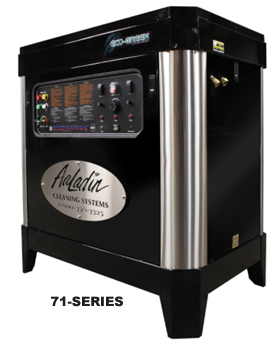

AaLadin High Efficiency 71 Series With Single Chamber/Single Control - Stationary NG/LP Hot Water Pressure Washer-ETL Listed
The 71-Series utilizes one heat chamber, one water pump, and a single set of controls with up to 6 GPM flow. These are ideal for single gun operation. With a long list of exclusive features, this pressure washer is sure to exceed your particular needs and expectations.
- Operates at 98% efficiency
- Average 38% fuel savings
- Lower ventilation costs as it uses (CPVC)
- Reduces negative environmental impact
Machine Brochure - AaLadin 71 Brochure.pdf
Warranty Information- Aaladin Warranty.pdf
Environmental Savings - Aaladin Eco Green Savings.pdf
Specs Options - Available in 115V 1 PH to 575V 3 PH Power
71-303-S - 3.0GPM@300PSI (steam only)
71-403-S - 4.0GPM@300PSI (steam only)
71-423 - 4.0GPM@2300PSI
71-430 - 4.0GPM@3000PSI
71-523 - 5.0GPM@2300PSI
71-530 - 5.0GPM@3000PSI
71-625 - 6.0GPM@2500PSI
71-630 - 6.0GPM@3000PSI

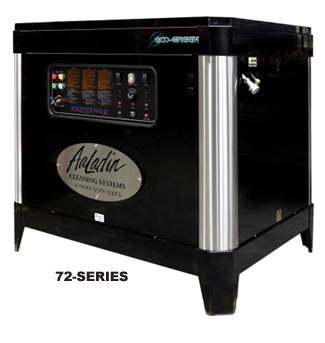

AaLadin High Efficiency 72 Series With Dual Chamber/Single Control - Stationary NG/LP Hot Water Pressure Washer-ETL Listed.
The 72-Series utilizes dual heat chambers allowing for higher flow rates between 6-12 GPM. This high flow is provided by a dual pump system and is operated by a single set of controls. These units are ideal for high flow, single gun operations or multi nozzle spray manifold setups where flow rates are constant.
- Operates at 98% efficiency
- Average 38% fuel savings
- Lower ventilation costs as it uses (CPVC)
- Reduces negative environmental impact
Machine Brochure - AaLadin 72 Brochure.pdf
Warranty Information - Aaladin Warranty.pdf
Environmental Savings - Aaladin Eco Green Savings.pdf
Specs Options - Available in 208V 1 PH to 575V 3 PH Power
72-830 - 8.0GPM@3000PSI
72-1012 - 10.0GPM@1200PSI
72-1022 - 10.0GPM@2200PSI
72-1030 - 10.0GPM@3000PSI
72-1225 - 12.0GPM@2500PSI
72-1230 - 12.0GPM@3000PSI

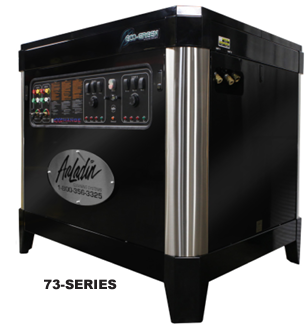

AaLadin High Efficiency 73 Series With Dual Chamber/Dual Control/Dual Clutch Drive - Stationary NG/LP Hot Water Pressure Washer-ETL Listed.
The 73-Series utilizes dual heat chambers, dual pump systems and has two independent sets of controls. Each control set operates a pump via a clutch drive. This unit provides the benefits of two totally independent pressure washers driven off a single motor and on one chassis. It is ideal for true independent two gun operation.
- Operates at 98% efficiency
- Average 38% fuel savings
- Lower ventilation costs as it uses (CPVC)
- Reduces negative environmental impact
Machine Brochure - AaLadin 73 Brochure.pdf
Warranty Information - Aaladin Warranty.pdf
Environmental Savings - Aaladin Eco Green Savings.pdf
Specs Options - Available in 230V 1 PH to 575V 3 PH Power
73-830 - 8.0GPM@3000PSI
73-1012 - 10.GPM@1200PSI
73-1022 - 10.0GPM@2200PSI
73-1030 - 10.0GPM@3000PSI
73-1225 - 12.0GPM@2500PSI
73-1230 - 12.0GPM@3000PSI

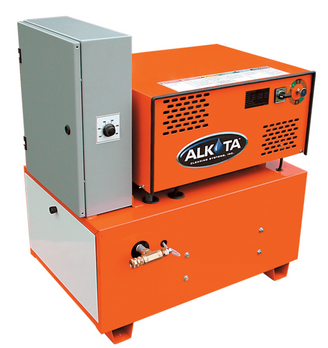

Alkota All-Electric Series Stationary Hot Water Pressure Washers--ETL Listed except model 108
Perfect for in plant cleaning systems where space is tight and open flames are out of the question. Benefits include: no smoke or hazardous fumes, no open flame, no combustible fuel required, maintains heat continuously, small space requirements.
Machine Brochure - Alkota All-Electric Brochure .pdf
Warranty Information - Alkota Warranty.pdf
Specs Options - Available in 230V 3 PH to 575V 3 PH Power
108 - 1.7GPM@400PSI (not ETL certified)
2148 - 2.0GPM@1400PSI
3158 - 3.0GPM@1500PSI
4108 - 4.0GPM@1000PSI
4208 - 3.5GPM@2000PSI
4258 - 3.5GPM@2500PSI
4308 - 3.5GPM@3000PSI
4358 - 3.8GPM@3500PSI
5308 - 4.7GPM@3000PSI
8208 - 8.0GPM@2000PSI
8308 - 8.0GPM@3000PSI
Installations Of Pressure Washers - Can add remotes for multiple drops to be able to turn the machine on from locations other than on machine. Drops can be added via hose reels or trolley lines
High Pressure Tubing - https://americanpressureinc.com/high-pressure-pipeline/
Tubing Brochure - Stainless Steel Tubing Brochure.pdf
Stainless Steel seamless tubing for your next pressure line.In addition to the standard tubing we use for most 6 GPM and lower applications we have other sizes and types available. We have the know-how to combine quality components with your needs for an easy solution.

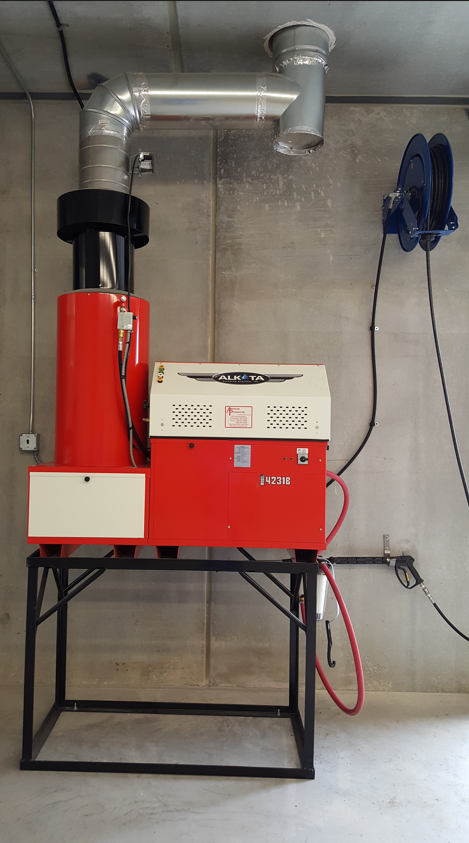

Sidewall Vented Pressure Washer Install Parts - 6" stacking/venting for Alkota
- 6" vent hood
- HS2 power venter
- 10"x 6" draft diverter (included with machine)
- 6" power damper

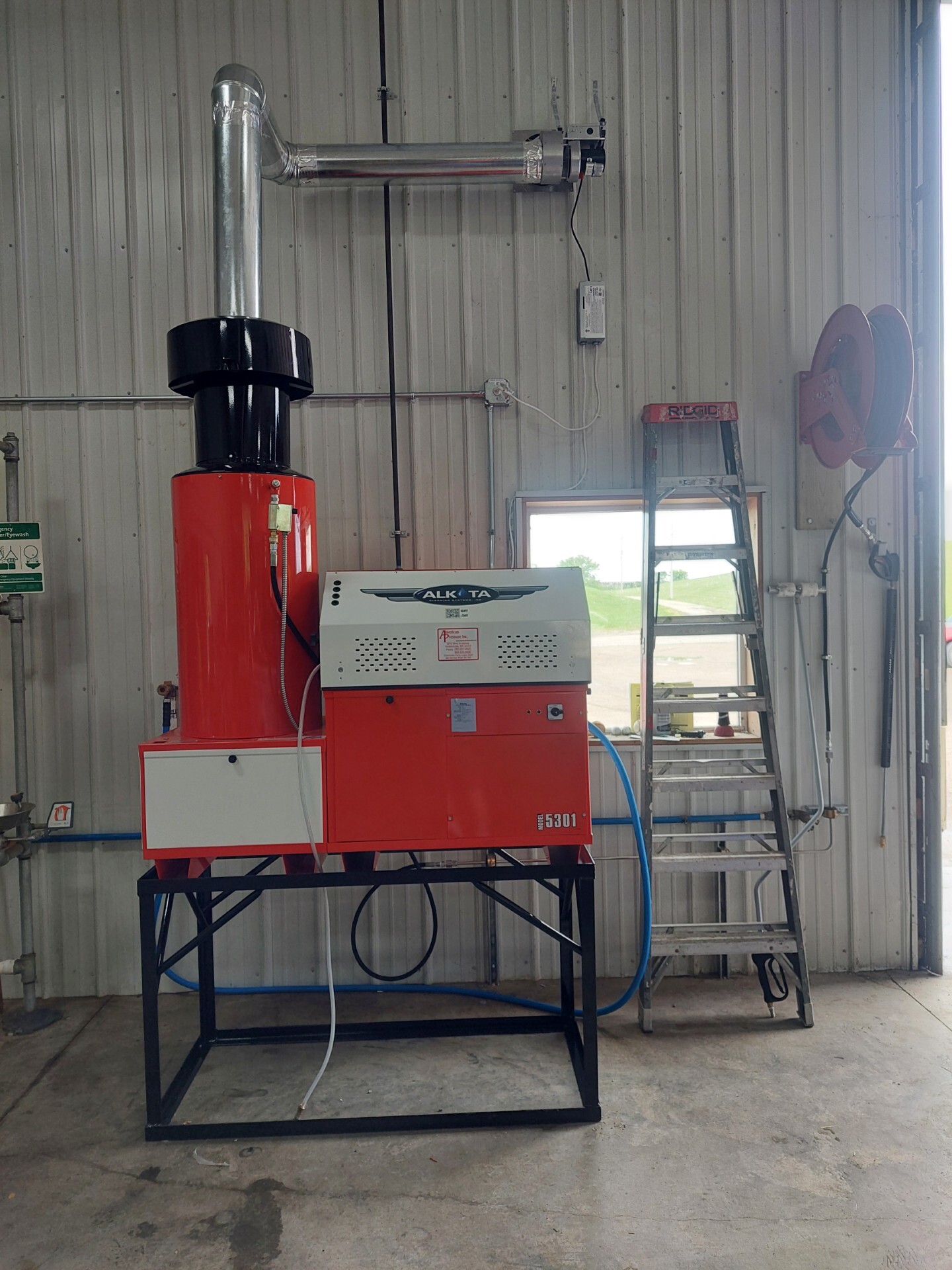

Roof Vented Pressure Washer Install Parts - 10" to 12" stacking/venting for Alkota
- 10" or 12"draft diverter (included with machine)
- 10" or 12" power damper

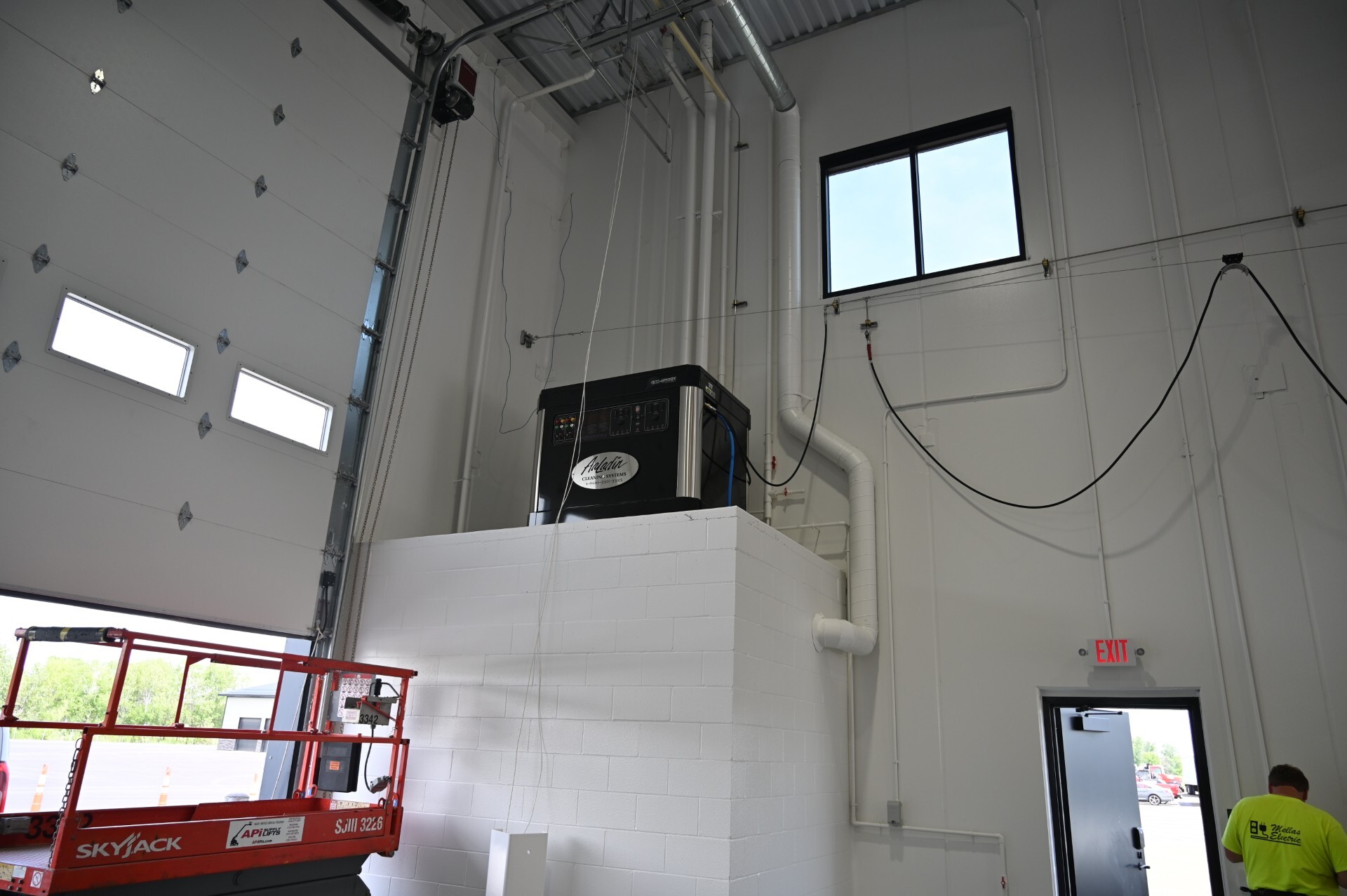

AaLadin 71 series, 72 series, 73 series stacking/venting
- 4" or 5" CPVC venting

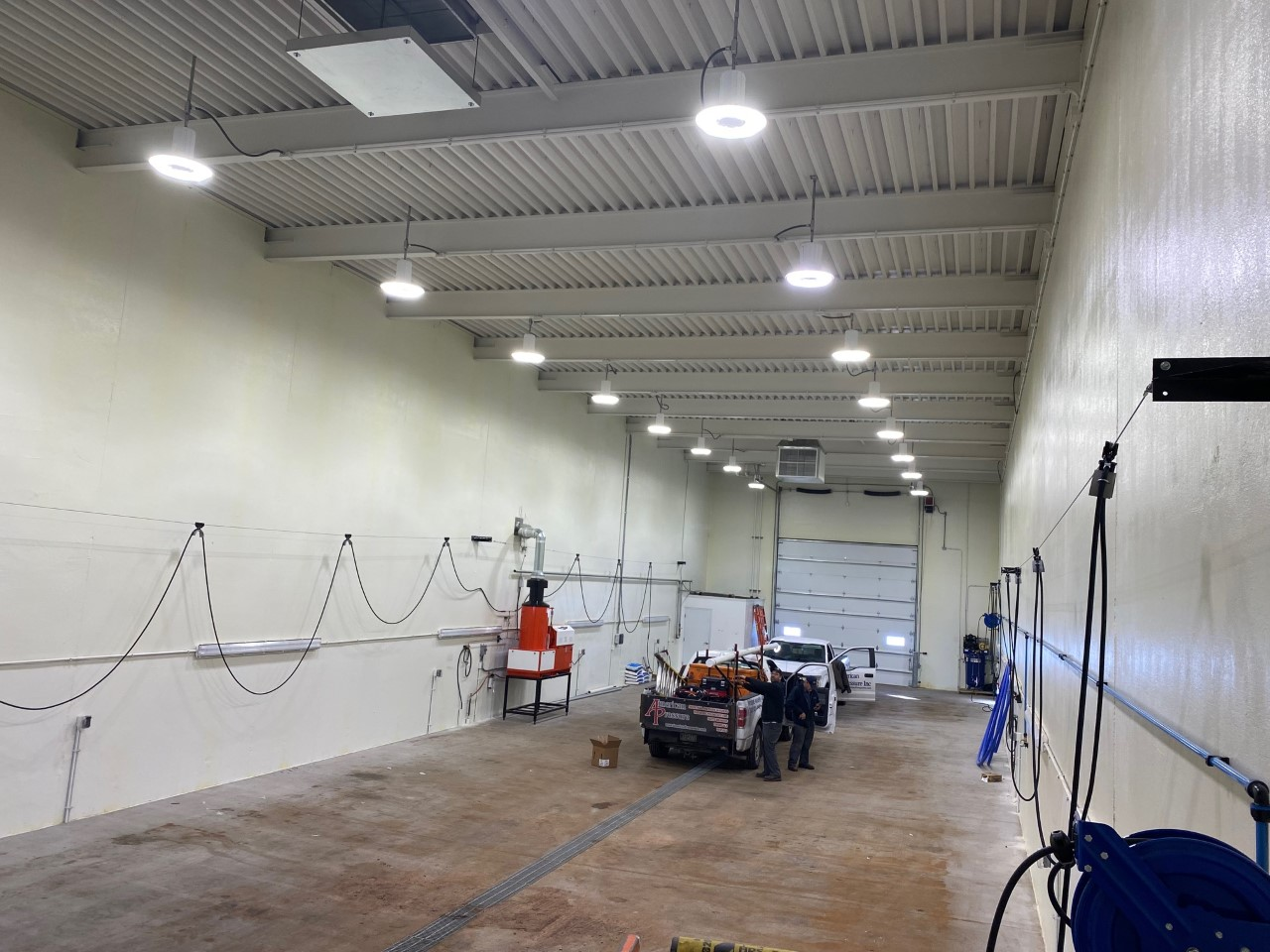

Dual Cable Trolley System for wash bays, ranging from 50-100 ft. in length - Reduces hose damage, increases worker safety, and keeps hoses clean. Hose trolleys ride on the cable for free movement back and forth in the bay.
Other Equipment We Provide For Building Spec

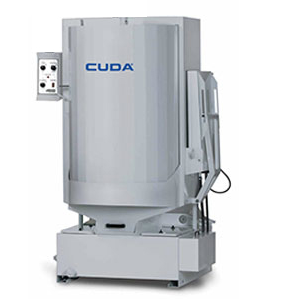

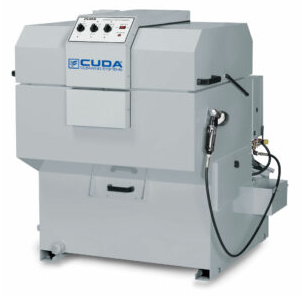

- Cuda Parts Washers To Automate Parts Cleaning With Solvent Free Cleaning - https://cudausa.com/products/
Environmental Benefits - Cuda Environmental Benefits.pdf

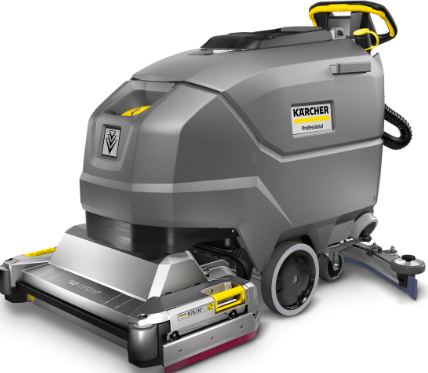

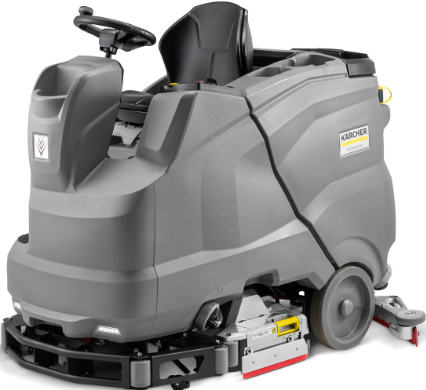

- Commercial Walk Behind Or Ride On Floor Scrubbers To Keep Shop Floors Clean
https://www.kaercher.com/us/commercial/floor-scrubbers.html

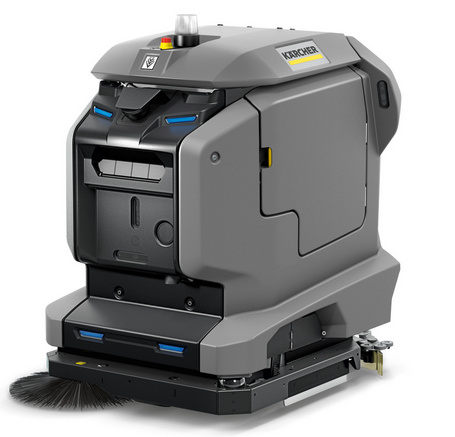

https://www.kaercher.com/us/commercial/autonomous-cleaning-equipment/kira-b-50-15330020.html

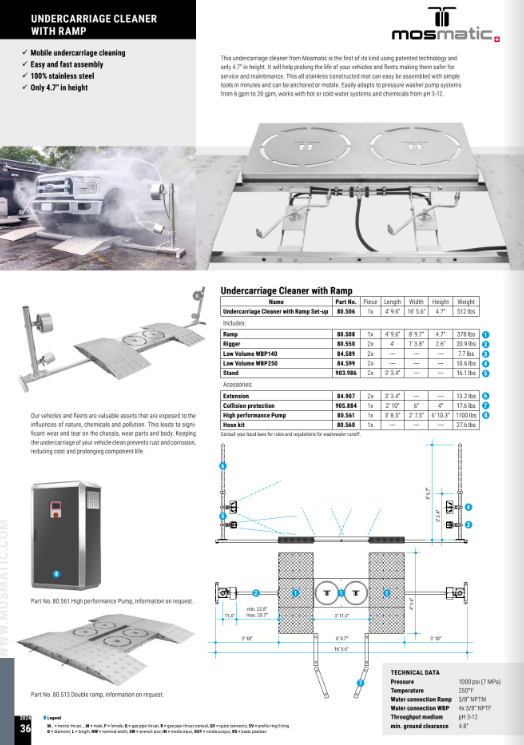

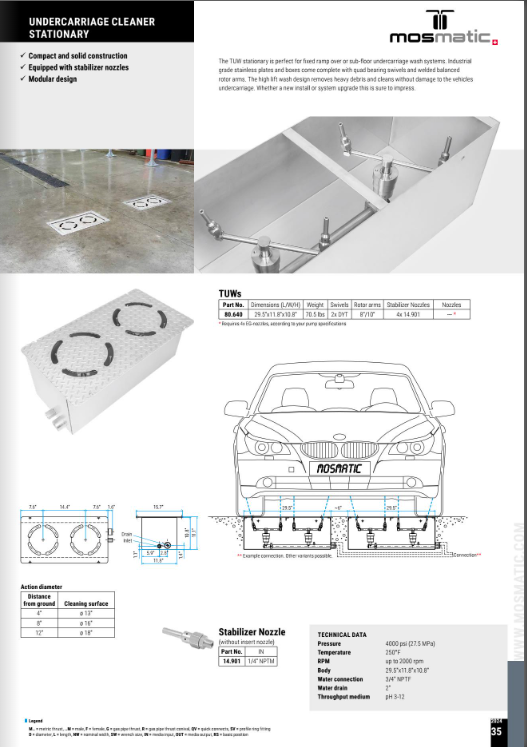

- Ramp Style Or In Floor Drive Over Undercarriage Cleaners & Portable To Ergonomically Clean Under Equipment Protect Equipment Investments Long Term
Ramp and in floor style require an 8GPM+ pressure washer to effectively drive the system. Portable style can be used with most pressure washers.

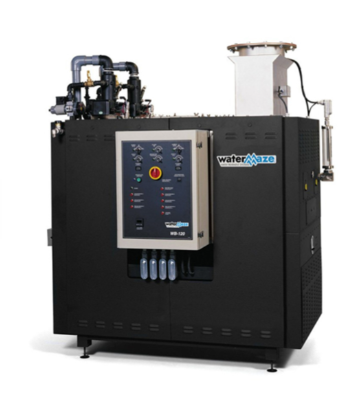

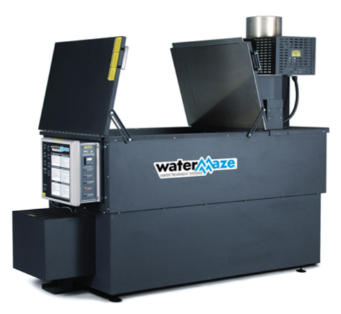

- Watermaze Evaporation And Water Reclamation Systems To Meet Clean Water Demands - https://www.wmaze.com/en/
No city sewer around? Hauling fees painfully high? Evaporation may be the simple solution! Every water treatment system needs to purge water eventually, evaporators can eliminate 95% of hauling costs by concentrating the solids and removing water as steam. Water Maze feasibility studies are available to determine the potential savings for any water sample.
Free oil/water separators allow oil to float to the surface to be skimmed off and water to be pulled off separately below the surface. Removing free oil is critical for discharging waste streams to a city sewer and as pre-treatment to bio-remediation treatment systems. Water Maze has multiple options for oil removal based on the type and amount of oil that needs to be separated.
- Alkota Water Reclamation/Treatment Systems To Meet Clean Water Demands-https://alkota.com/products/water-treatment-and-recovery-systems/water-treatment-systems/
Compliance with local, state and federal (EPA) waste water requirements has never been more difficult. In fact, just about anyone washing equipment, machinery or vehicles and discharging the water without treatment is in violation. Alkota has developed waste water treatment systems designed to aid in minimazing the problems associated with discharge regulations. The high quality of water produced using this systems means that you have control deciding whether reuse or discharge is the right answer for your particular application. Simply stated, Alkota Media Filtration Systems offer standard configurations allowing reuse or discharge to sanitary sewer. The choice is yours.

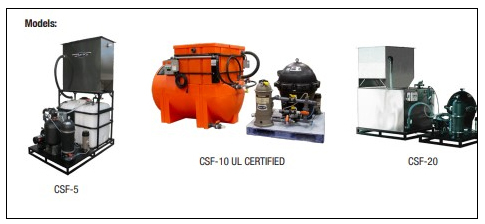

The Alkota Media Filtration System is a low maintenance affordable way of working with water conservation or environmental regulations that limit the discharge of pressure washer or steam cleaner generated waste streams. This system utilizes above ground storage and process tanks for the ease of service & maintenance. The CSF Series limits the need for underground containment while limiting the exposure for possible leaks that could potentially contaminate property.
Click here for a brochue on Alkota CSF Water Treatment - Alkota Water Treatment.pdf

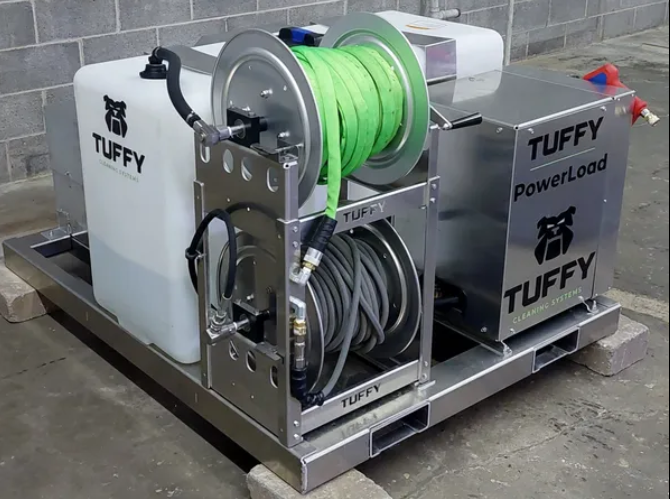

- Tuffy Cleaning Cleaning Systems - Zero emissions, battery powered commercial pressure washer for primarily portable outdoor use or it can also be used as an indoor stationary option if power in building is not adequate to get the performance needed. Designed and assembled in the USA - https://tuffycleaningsystems.com/
Tuffy Cleaning Systems is at the forefront of innovation in electric power washers. We have developed advanced technology that provides powerful cleaning capabilities while being completely battery-powered, eliminating the need for fuel and reducing carbon emissions. This groundbreaking technology not only offers exceptional cleaning performance but also contributes to a greener and more sustainable future.
Technical Center:
Fuel Comparison - Fuel Comparison.pdf
Ceta Presentation - Flow vs Pressure.pdf
Scale, what is it and how does it affect pressure washers and what can be done about it? - Scaltrol Flyer.pdf, Scaltrol Map And What It Affects.pdf
Impact Force: Higher impact force=faster cleaning times - Impact Force - How It Is Calculated.pdf
Environmental Happenings To Follow For Pressure Washers:
BABA - https://www.epa.gov/cwsrf/build-america-buy-america-baba
SB 2030 for Minnesota - https://www.mncee.org/minnesota-sustainable-buildings-2030
Employee Ergonomics:
- Anti-Fatigue Relaxes Action Trigger Gun - https://americanpressureinc.com/premium-relaxed-action-trigger-gun-ap-4850/
- Live Swivel elimiantes hose twist and reduces stress on the operator and fittings - https://americanpressureinc.com/stainless-steel-high-pressure-live-swivel-3-8/

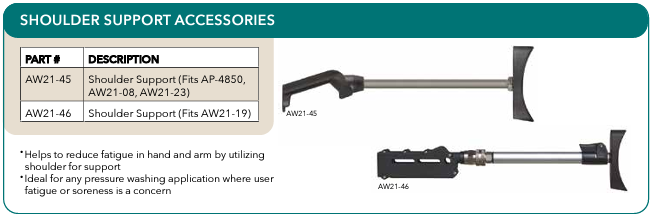

- Should Support For Trigger Gun - Helps reduce fatigue in hand and arm by utilizing shoulder for support

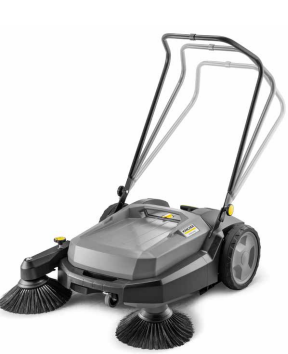

- Compact Sweeper - Traditional brooms are a thing of the past for cleaning up dust and small particles from shop floors. The manual sweeper makes cleaning surfaces effortless and virtually dust-free thanks to the filter, sweeping roller and side brush - whether indoors or outside. The area performance is 7 times higher than with a broom

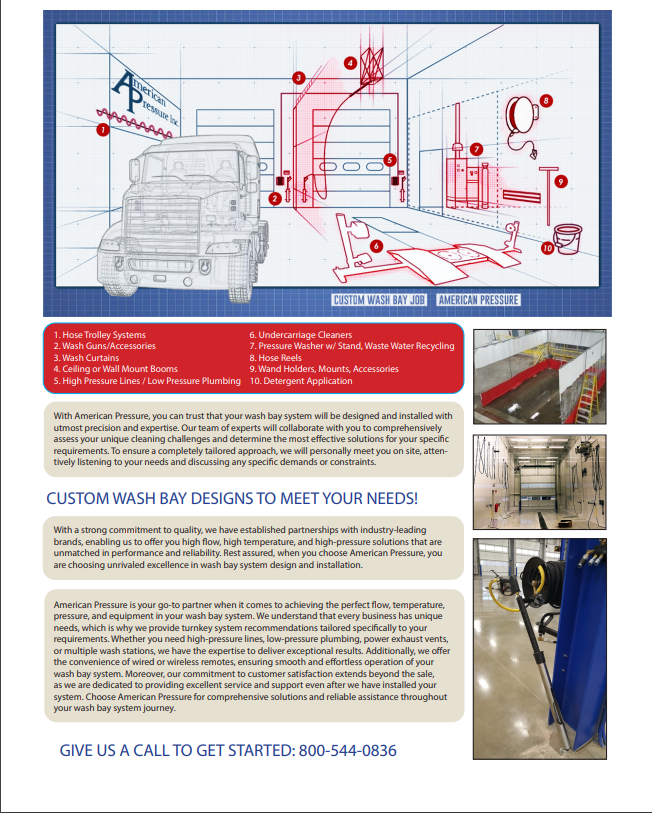

Custom Designs

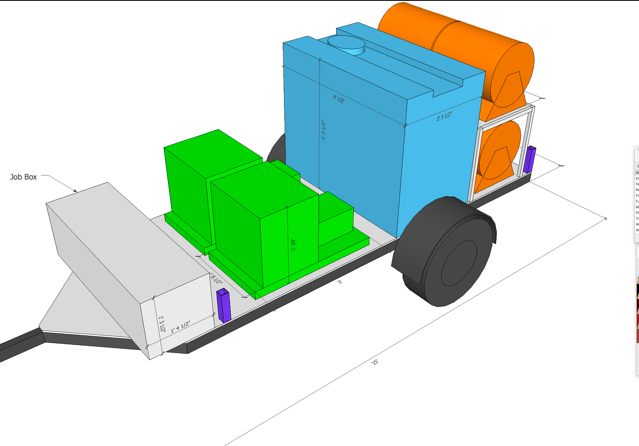

We have the ability to custom design wash bays or portable style designs to meet your building or job spec
