Product Description

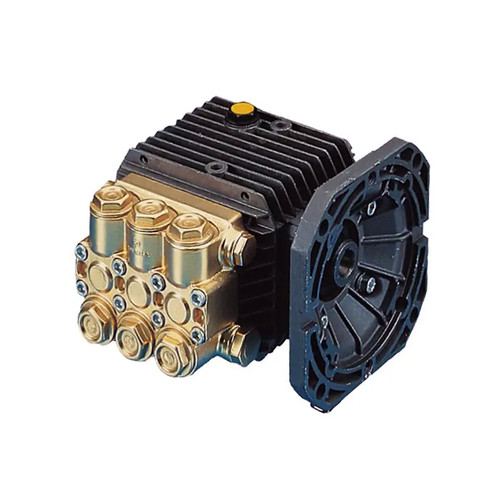

The General Pump TT2035EBF is a triplex plunger pump designed for high-pressure applications, featuring a flange that accommodates electric NEMA 56C motors with a maximum speed of 3400 RPM. This pump boasts a maximum flow rate of 3.5 GPM and can achieve a pressure of up to 2000 PSI. Constructed with a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers, the TT2035EBF is an excellent option for high-pressure spraying, misting, and cleaning tasks.
American Pressure is an authorized distributor for all General Pump products, our experience with the TT2035EBF pump and large stocking levels and long history of customer support make American Pressure an ideal place to order this pump.
Features:
- Forged brass manifold
- Die cast, anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
Specifications:
- Maximum Volume: 3.5 GPM
- Maximum Discharge Pressure: 2000 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
- Bore: .591 in. / 15 mm
- Stroke: .315 / 8
- Crankcase Oil Capacity: 11.2 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 3/8-19 BSPP-F
- Discharge Port Thread: 1/4-19 BSPP-F
- Shaft: 3/4 in./19 mm, Hollow, Right Side
- Weight: 11.5 lbs.
- Dimensions: 7.0" x 7.2" x 5.5"
-
Authorized distributor of General Pump
