Product Description

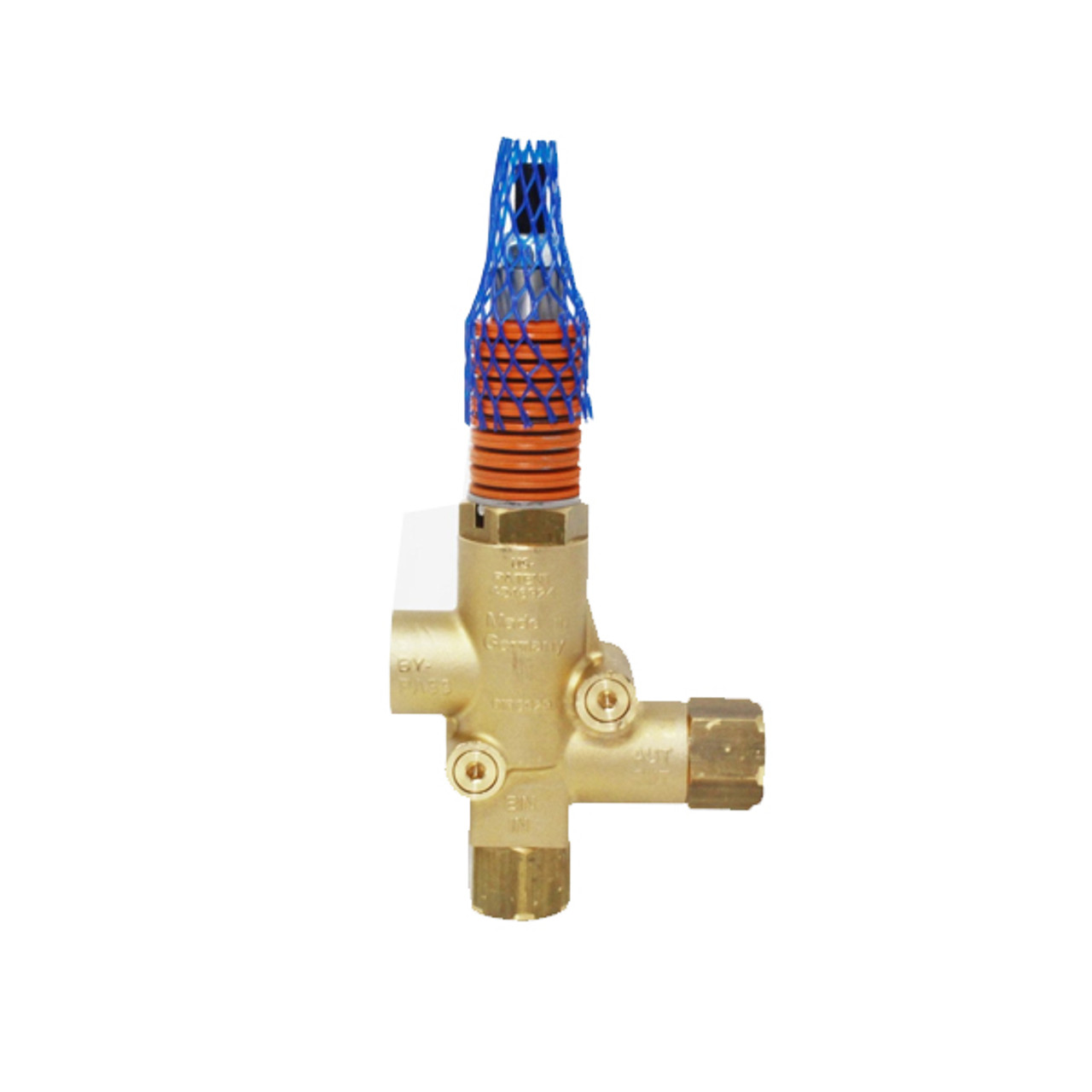

Brass Unloader to Regulate System Flow : The Giant 22973C pressure-actuated unloader is designed for any pump that fits within the flow and pressure range of the unloader. The unloader regulates the flow in the system and maintains system pressure via an adjustable nut that controls the amount of tension on a pressure spring. When no flow is going out the outlet port, all flow is diverted to the bypass port at virtually no pressure. The 22973C is capable of handling one or more shut-off guns and should be run with no bypass (if the full flow from the pump is going through the unloader). It actuates at around 10% above the system pressure.
Specifications:
26.4 GPM Max Flow
4060 PSI Max
Inlet: 3/4″ NPT-F
Outlet: 3/4″ NPT-F
Bypass: 3/4″ NPT-F
Max Temp: 158°
