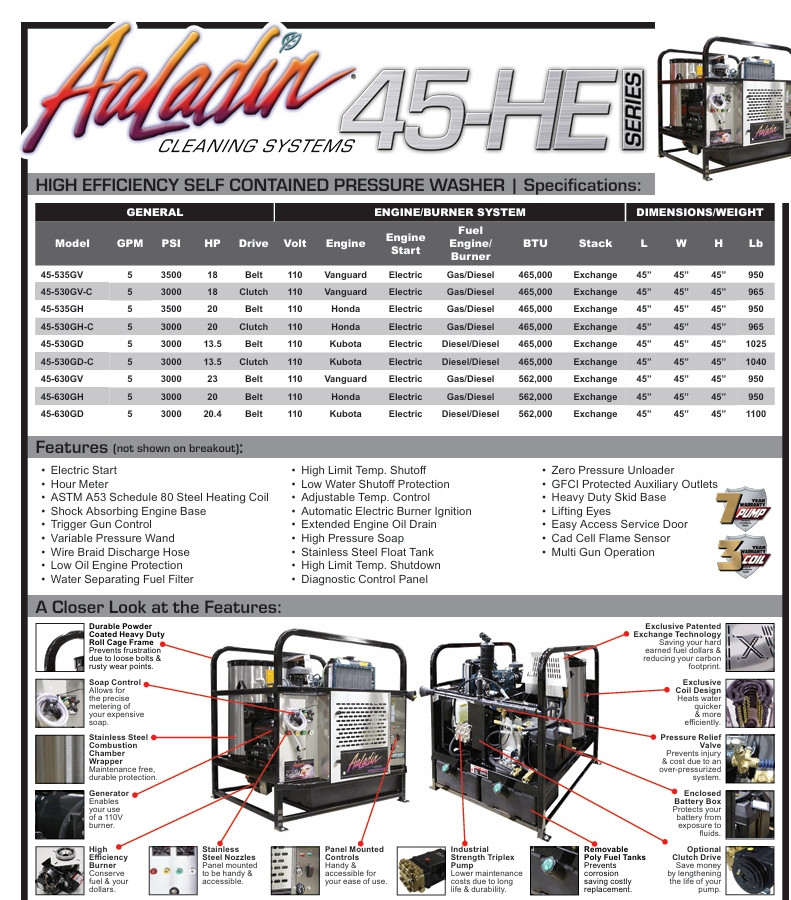

Product Description
The AaLadin 45-HE Series is a heavy-duty, portable hot water pressure washer designed for demanding professional and industrial applications. It features a durable powder-coated heavy-duty roll-cage frame, high-efficiency burner technology, and powerful engine options (Vanguard, Honda, or Kubota). This series delivers excellent performance and mobility for contractors, fleet maintenance, agriculture, construction, and heavy equipment cleaning.
Key Specifications:
- Performance: 5.0 GPM @ 3000–3500 PSI
- Pump: Industrial Triplex Pump with Belt Drive or Clutch Drive
- Engines: 13.5 – 23 HP (Vanguard, Honda, or Kubota) with Electric Start
- Fuel: Gas/Diesel or Diesel/Diesel
- Heat Output: 465,000 – 562,000 BTU
- Frame: Heavy-duty roll cage with shock-absorbing engine base
- Dimensions: 45" L x 45" W x 45" H
- Key Features: Patented Exchange Technology burner, stainless steel components, low water/high temp protection, hour meter, downstream injection, GFCI protection, easy-access service door, and optional generator capability.
Models & Specifications
| Model | GPM | PSI | HP | Drive | Voltage | Engine | Fuel | BTU | Weight (lbs) |
|---|---|---|---|---|---|---|---|---|---|
| 45-535GV | 5 | 3500 | 18 | Belt | 110 | Vanguard | Gas/Diesel | 465,000 | 950 |
| 45-535GV-C | 5 | 3000 | 18 | Clutch | 110 | Vanguard | Gas/Diesel | 465,000 | 965 |
| 45-535GH | 5 | 3500 | 20 | Belt | 110 | Honda | Gas/Diesel | 465,000 | 950 |
| 45-530GH-C | 5 | 3000 | 20 | Clutch | 110 | Honda | Gas/Diesel | 465,000 | 965 |
| 45-530GD | 5 | 3000 | 13.5 | Belt | 110 | Kubota | Diesel/Diesel | 465,000 | 1025 |
| 45-530GD-C | 5 | 3000 | 13.5 | Clutch | 110 | Kubota | Diesel/Diesel | 465,000 | 1040 |
| 45-630GV | 5 | 3000 | 23 | Belt | 110 | Vanguard | Gas/Diesel | 562,000 | 950 |
| 45-630GH | 5 | 3000 | 20 | Belt | 110 | Honda | Gas/Diesel | 562,000 | 950 |
| 45-630GD | 5 | 3000 | 20.4 | Belt | 110 | Kubota | Diesel/Diesel | 562,000 | 1100 |
Notable Features
- Exclusive high-efficiency combustion chamber and coil design
- Stainless steel float tank, nozzles, and combustion chamber wrapper
- Removable poly fuel tanks
- Diagnostic control panel
- Built for rugged daily use with easy maintenance access
This is the largest and most powerful model in the AaLadin HE portable hot water series (following the 41-HE, 42-HE, and 44-HE).
